FILOIL
Transformer oil treatment equipment
FILOIL dries, degasses, and filters mineral transformer oil, bringing it back to specification on energized or de-energized transformers. Six configurations from 1 500 to 24 000 l/h, stationary or mobile, each engineered and built in-house. Same treatment capability across the line — the difference is throughput.
Six configurations, one platform

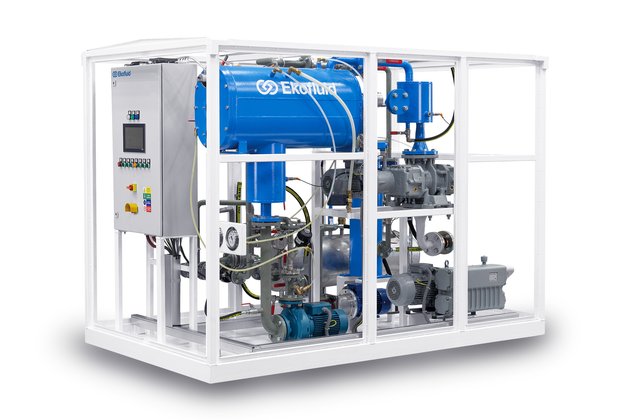

FILOIL 1500
FILOIL 1500 dries, degasses, and filters mineral transformer oil to the condition the asset needs — on energized or de-energized transformers, in the field or on the production line. The most compact unit in the line, it goes where larger plants cannot and runs continuously once it is there.
- Max. oil flow
- 1 500 l/h
- Heating capacity
- 18 kW
- Vacuum capacity
- 100 m³/h
- Fine filter
- 0,5 µm

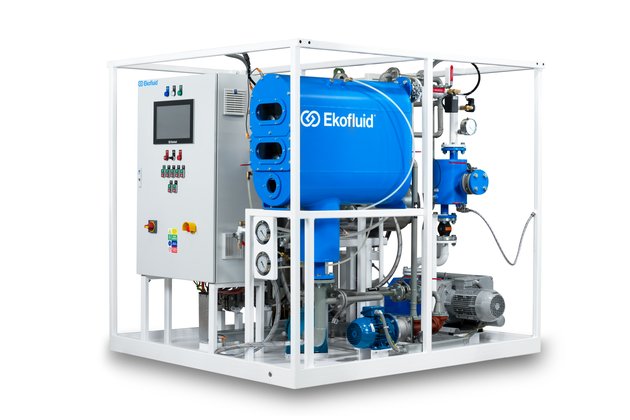

FILOIL 3000
FILOIL 3000 removes moisture, dissolved gases, and solid particles from mineral transformer oil. Compact enough to move between sites, fast enough for continuous service, it operates on energized or de-energized transformers in stationary or mobile configurations.
- Max. oil flow
- 3 000 l/h
- Heating capacity
- 36 kW
- Vacuum capacity
- 200 m³/h
- Fine filter
- 0,5 µm

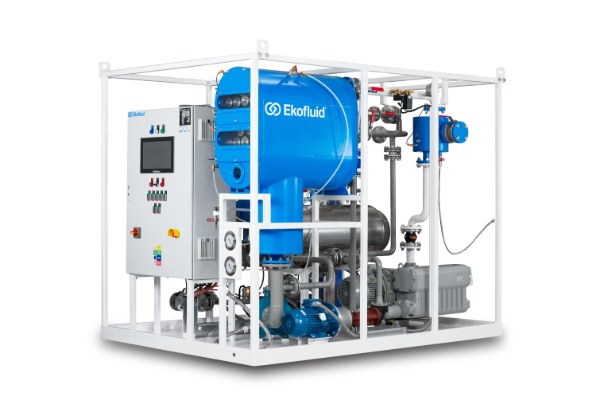

FILOIL 6000
FILOIL 6000 dries, degasses, and filters mineral transformer oil to the condition the asset needs — on energized or de-energized transformers, in the field or on the production line. The most versatile unit in the line, it covers medium to large transformers and runs continuously through long service campaigns.
- Max. oil flow
- 6 000 l/h
- Heating capacity
- 72 kW
- Vacuum capacity
- 300 m³/h
- Fine filter
- 0,5 µm

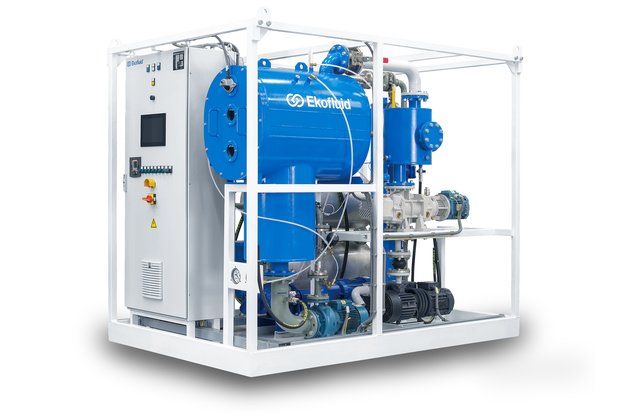

FILOIL 9000
FILOIL 9000 dries, degasses, and filters mineral transformer oil to the condition the asset needs — on energized or de-energized transformers, in the field or on the production line. Built for high throughput, it treats large power transformers quickly and runs continuously through demanding campaigns.
- Max. oil flow
- 9 000 l/h
- Heating capacity
- 108 kW
- Vacuum capacity
- 600 m³/h
- Fine filter
- 0,5 µm

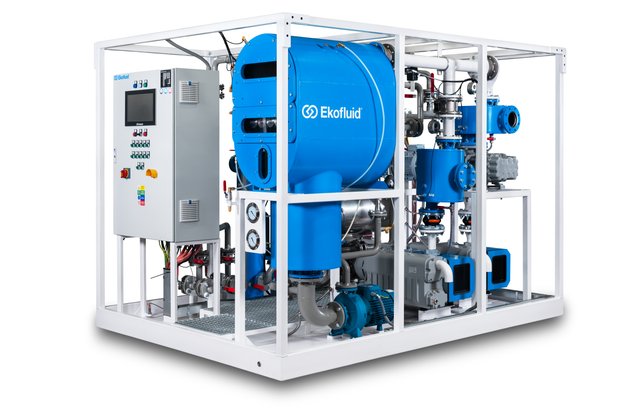

FILOIL 12000
FILOIL 12000 dries, degasses, and filters mineral transformer oil to the condition the asset needs — on energized or de-energized transformers, in the field or on the production line. A large-capacity plant for big power transformers, it processes high oil volumes continuously and holds full treatment quality throughout.
- Max. oil flow
- 12 000 l/h
- Heating capacity
- 144 kW
- Vacuum capacity
- 1 400 m³/h
- Fine filter
- 0,5 µm

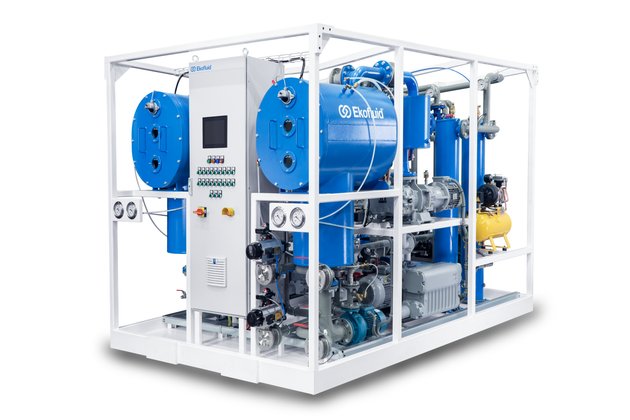

FILOIL 24000
FILOIL 24000 dries, degasses, and filters mineral transformer oil to the condition the asset needs — on energized or de-energized transformers, in the field or on the production line. The flagship of the line, with a dual vacuum chamber that runs in parallel or in series, it treats the largest transformers and the highest oil volumes anywhere in the range.
- Max. oil flow
- 24 000 l/h
- Heating capacity
- 288 kW
- Vacuum capacity
- 2 800 m³/h
- Fine filter
- 0,5 µm
