REOIL
Transformer oil regeneration equipment
REOIL restores aged transformer oil to fresh-oil specification, removing the acids, sludge, oxidation products, and corrosive sulfur that years of service create. Adsorption through bauxite columns with in-system sorbent reactivation, dehydration, and degassing, brought back to IEC 60422 and, in most cases, IEC 60296. Four configurations from compact mobile unit to dual-bank flagship, plus an add-on module for FILOIL plants.
Four configurations, one process

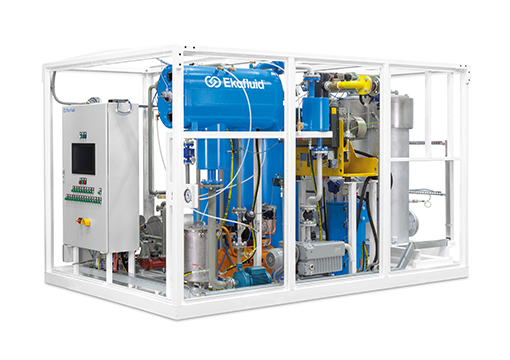

REOIL S
The compact unit. For smaller transformers, urban substations, and remote sites.
- Max. oil flow
- 1 000 l/h
- Adsorption columns
- max 6
- Max. oil capacity
- 10 000 kg
- Transformer range
- 1–5 MVA

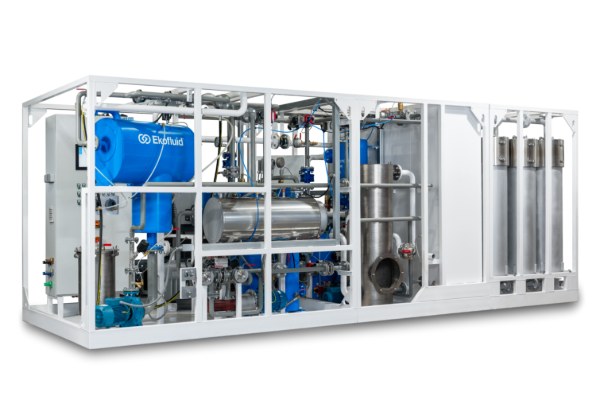

REOIL M
The versatile standard. For medium and large transformers across diverse fleets.
- Max. oil flow
- 6 000 l/h
- Adsorption columns
- max 10 (5×2)
- Max. oil capacity
- 30 000 kg
- Transformer range
- 5–100 MVA
REOIL L
The flagship. Dual-bank adsorption, the largest power transformers.
- Max. oil flow
- 9 000 l/h
- Adsorption columns
- max 24 (12×2)
- Max. oil capacity
- 100 000 kg
- Transformer range
- 40 MVA and above

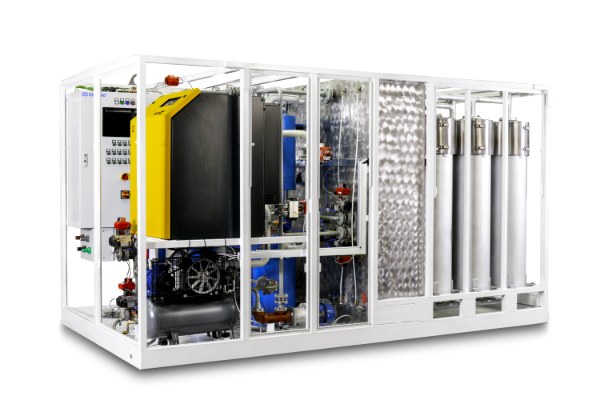

REOIL Module
The regeneration add-on. Pairs with a FILOIL plant for a complete system.
- Max. oil flow
- 9 000 l/h
- Adsorption columns
- max 24 (12×2)
- Max. oil capacity
- paired with FILOIL
- Transformer range
- 1–100 MVA
