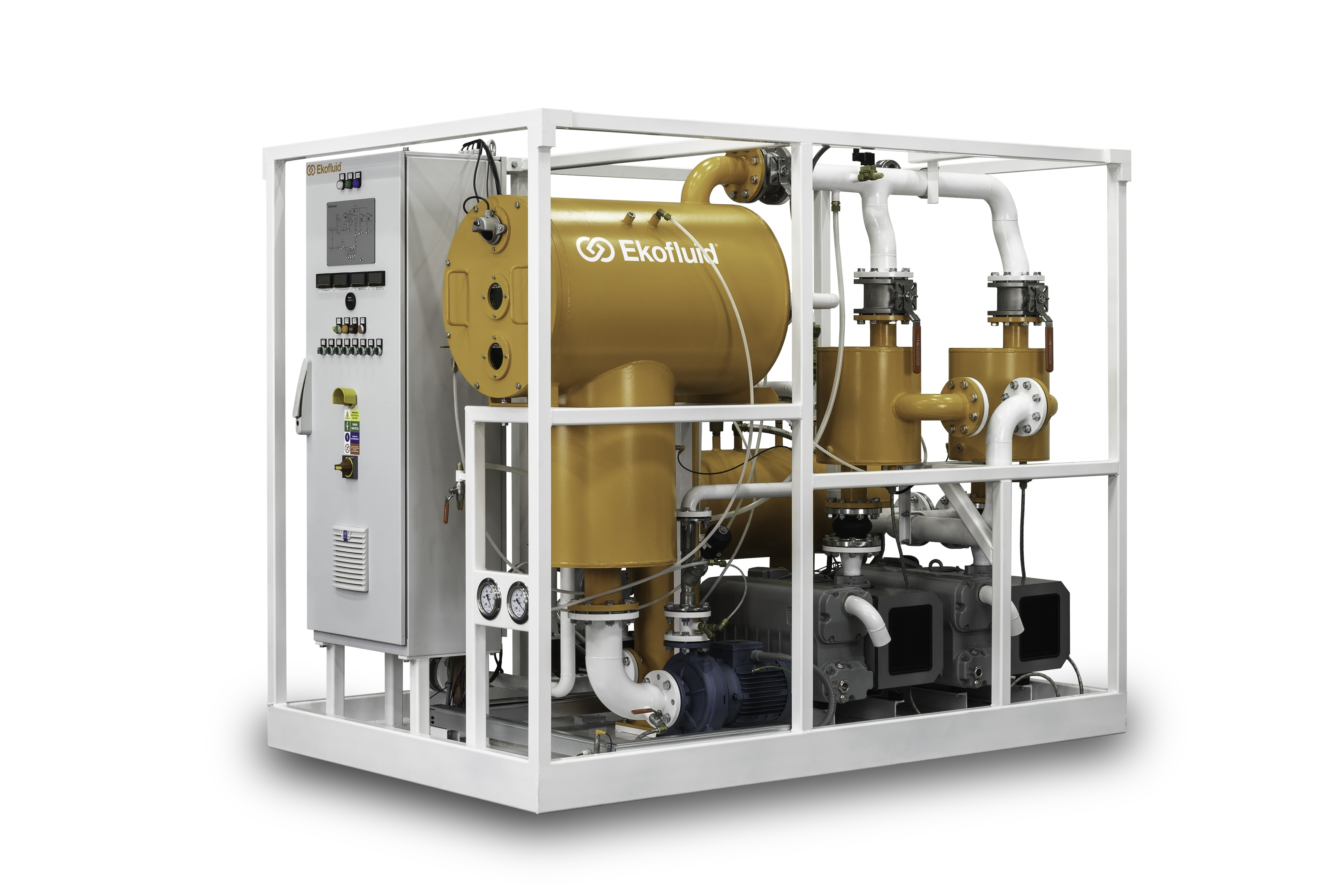

ECOIL 8000

Transformer oil purification plant

ECOIL 8000 dries, degasses, and filters mineral transformer oil, running the essential purification process from a single control panel. The largest unit in the line, it ships from stock as a fixed configuration and handles high-volume purification where larger transformers need consistent processing.

  • Vacuum dehydration and degassing in a single pass
  • Three fixed configurations, available from stock
  • Engineered for mineral transformer oil
  • Simple operation from a single control panel
Learn more about ECOIL Technical specifications
Get in contact Download catalog
ECOIL 8000

Overview

What ECOIL 8000 does

ECOIL 8000 purifies mineral transformer oil. Moisture, dissolved gases, and particles accumulate over years of service and pull the oil's dielectric strength down; in a single pass, the unit dries the oil under vacuum, strips dissolved gases, and filters particles to 0,5 µm, and the oil goes back to work.

ECOIL does the essential purification process and nothing beyond it. It comes in three fixed configurations that ship from stock, so there is no configuration step and no long lead time — you order the model that matches your volume and put it to work. Operation runs from a single clear control panel that operators handle without specialist training.

For the underlying chemistry of moisture, oxidation, and dielectric performance, see the Handbook of Transformer Oil Excellence.

Read the handbook

Application

Best suited for

ECOIL 8000 is the unit for high-volume purification and larger transformers, and for service programmes that process big oil volumes on a predictable, repeatable job. It is the top of the ECOIL line. For oil configured to a specific target, online work on energized transformers, ester fluids, or regenerating aged oil, the range continues with FILOIL, FILOIL est., and REOIL.

Specifications

Technical specifications

Max. oil flow
8 000 l/h
Fine filter
0,5 µm
Heating capacity
108 kW
Vacuum capacity
600 m³/h
Ultimate vacuum
< 1 mbar
Max. capability water
< 5 ppm
Max. capability gas
< 0,3 %
Max. performance
> 85 kV
Need the full datasheet? Request it

Engineered to a different standard

  • The essential process

    Vacuum drying, degassing, and filtration to 0,5 µm, in a single pass. The core purification job and nothing beyond it.

  • One panel, no training

    Run from a single control panel with clear indicator lights. An operator learns it in minutes, with no specialist control system to manage.

  • Relay logic, nothing to crash

    Hard-wired relay control, not software. Fewer things to go wrong, nothing to update, and a unit that starts the same way every time.

  • Fixed configuration

    Three defined models, no options matrix and no configuration step. You choose by the volume you need to purify.

  • Available from stock

    A standard build with a short lead time. Ordered and delivered ready to run, not engineered to a project.

  • Built to last

    Black steel, fully welded, dual-coated and baked. Simple to run, simple to maintain, built for years of routine service.

Get in touch

Order your ECOIL 8000

ECOIL ships in three fixed configurations from stock. Tell us the oil volume you need to purify and the engineering team will confirm the right model and lead time.
