ECOIL
Transformer oil purification equipment
ECOIL dries, degasses, and filters mineral transformer oil, running the essential purification process in three fixed configurations that ship from stock. From 2 000 to 8 000 l/h, ordered not configured, each built and operated simply. The straightforward route to oil back in specification.
Three configurations, ordered from stock

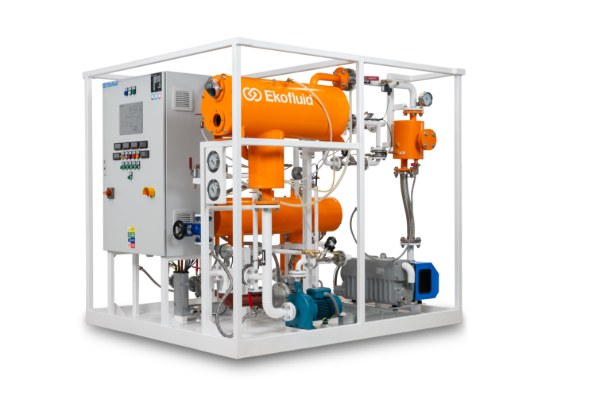

ECOIL 2000
The compact unit. For distribution transformers and smaller-scale work.
- Max. oil flow
- 2 000 l/h
- Heating capacity
- 36 kW
- Vacuum capacity
- 200 m³/h
- Fine filter
- 0,5 µm
ECOIL 5000
The mid-range unit. For medium-volume purification across substations and fleets.
- Max. oil flow
- 5 000 l/h
- Heating capacity
- 72 kW
- Vacuum capacity
- 300 m³/h
- Fine filter
- 0,5 µm

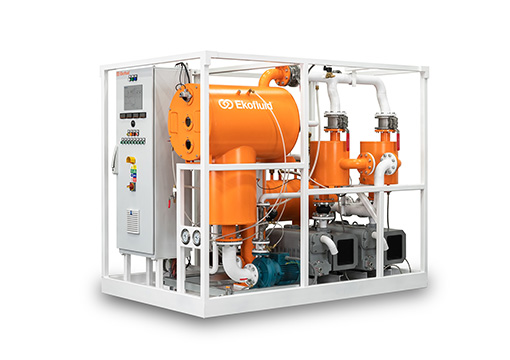

ECOIL 8000
The high-volume unit. For larger transformers and high-volume work.
- Max. oil flow
- 8 000 l/h
- Heating capacity
- 108 kW
- Vacuum capacity
- 600 m³/h
- Fine filter
- 0,5 µm
Need help choosing the right equipment?
Our engineers will help you select the most advanced equipment for your application — or design a custom solution.
