FILOIL est.
Ester oil treatment equipment
FILOIL est dries, degasses, and filters natural and synthetic ester transformer fluid, bringing it back to specification on energized or de-energized transformers. Three configurations from 3 000 to 9 000 l/h, stationary or mobile, each engineered and built in-house and tuned to ester properties. The FILOIL platform, made for esters.
Three configurations, made for esters

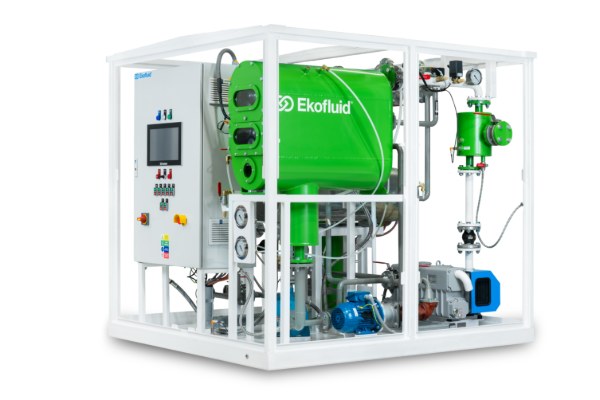

FILOIL 3000 est
The compact ester unit. For distribution and medium ester transformers.
- Max. oil flow
- 3 000 l/h
- Heating capacity
- 72 kW
- Vacuum capacity
- 200 m³/h
- Fine filter
- 0,5 µm

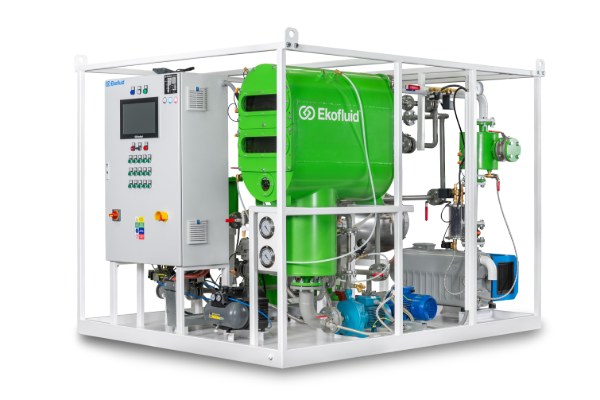

FILOIL 6000 est
The versatile ester unit. For medium to large ester transformers.
- Max. oil flow
- 6 000 l/h
- Heating capacity
- 108 kW
- Vacuum capacity
- 300 m³/h
- Fine filter
- 0,5 µm

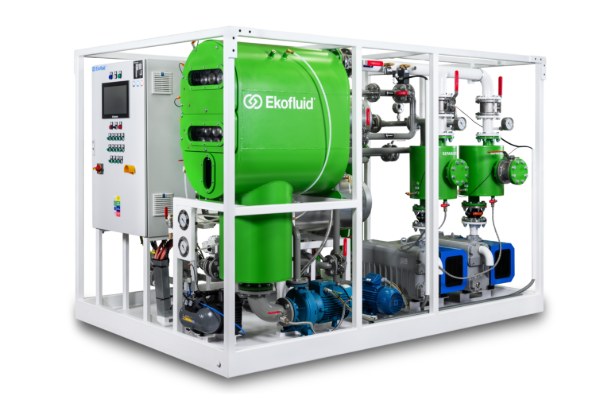

FILOIL 9000 est
The flagship ester unit. For production lines and large-scale ester work.
- Max. oil flow
- 9 000 l/h
- Heating capacity
- 144 kW
- Vacuum capacity
- 600 m³/h
- Fine filter
- 0,5 µm
