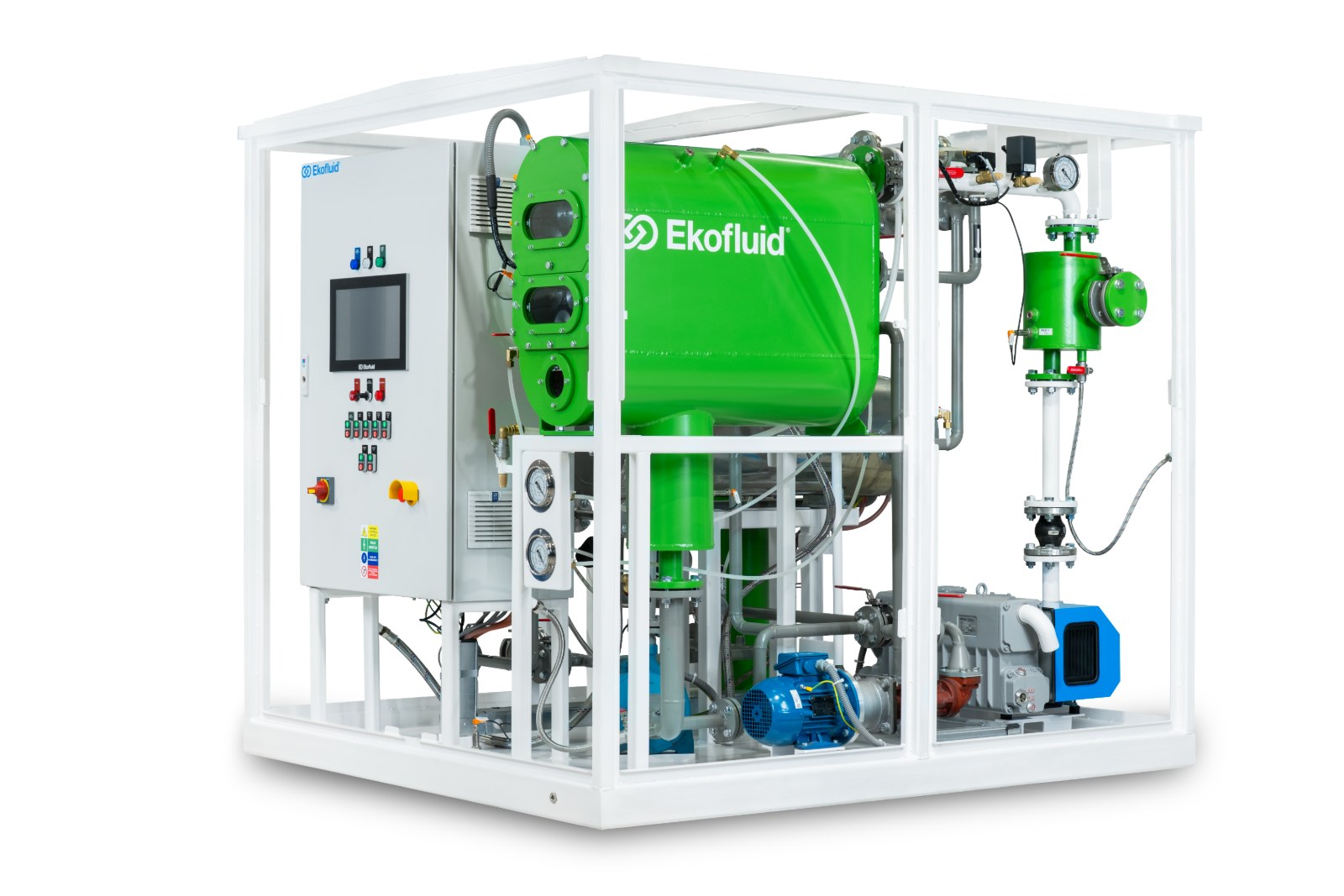

FILOIL 3000 est

Engineered to a different standard

• The stadium chamber

  A vacuum chamber no one else builds, and an engineering challenge to get right. The stadium shape enlarges the chamber and the processing area, makes room for more coalescing stages, and gives the fluid a second degassing pass on the way through.

• Foam under active control

  Side-mounted sensors read foam height in the chamber in real time. When it rises, the PLC eases the vacuum or the flow, your choice, with no air let into the process.

• Tuned for ester chemistry

  The whole process is set up for natural and synthetic esters, not mineral oil. Esters hold more water by nature, so drying, heating, and filtration are tuned to ester properties to bring the fluid back to specification.

• Heating built for esters

  Esters are more viscous than mineral oil and need more thermal input, so est. units carry higher heating capacity. Modular heaters specified to your own watt/cm², welded only from outside the vessel. Low surface load, no local fluid degradation.

• Capacity that grows

  Coalescers mount on a threaded fitting, so processing stages are added later as a retrofit, with no cutting and no welding into the vessel.

• Vacuum held to setpoint

  The regulation valve sits on the vacuum line, ahead of the pump, not on the chamber, so no air enters the process. The PLC holds the vacuum to whatever level you set.

• Runs itself. Watches itself.

  Fully automatic PLC, with a full SCADA and on-board edge analytics. Manual controls are PLC-guarded. The wrong move is blocked before it happens.

• Interlocked for every scenario

  Alarms, sensors, and interlocks across every condition the unit can meet. Designed to run safely, attended or unattended.

• Connected as standard

  An integrated modem and on-board server push every reading to ekofluid.cloud. Your portal holds the full history and the documentation. Log in and run the unit from any browser.

• Inline fluid analysis

  Optional onboard sensors for moisture, dissolved gas, tan delta, and breakdown voltage, tuned to ester properties. Readings flow straight into the SCADA.

• Built for the production line

  The same plant that conditions ester in the field equips an ester production line in the factory, drying, degassing, and filling new transformers to specification before they ship.

• Filters changed in minutes

  Redesigned casings unscrew by hand. Inlet and outlet share one cartridge type, so you stock one spare. Your choice of beta ratio and micron rating.

• Mounted however the site needs

  Each frame sits on the ground, on forklift-friendly legs supplied as standard, or on an optional wheel base. Stationary on the line or mobile to the wind park, all detachable.

• Built to outlast the asset

  Black steel, fully welded, dual-coated and baked. Secured stainless drain hoses on every vessel, and a catch tray that drains down at the end of the day.
